Easy High-flow Liquid Filling Machine／Model　M1502K-5000CCS Series 【Details】
Model Number M1502K-5000CCS Series Price
●The small filling machine can fill almost any liquid such as sticky and granule liquid.
●Can fill the size of granule liquid up to the inner diameter hose.
●Regardless of high-low liquid, the accuracy is ±1%.
●Fills different types of liquids easily by replacing tubes and nozzles.		 Easy High-flow Liquid Filling Machine
Model Number　M1502K-5000CCS Series
Please contact us for prices.
■Features
●The filling amount can be set with a counter easily.
●Can use the size of plastic bottles as filling.
●Uses for filling a large amount of liquid into small amounts each.
●If you prepare some hoses, you can fill different types of liquids.

■Specification
Model M1502K-5000CCS M1502K-7000CCS
Capacity 5000cc／min
(1m of self priming filling machine)		 7000cc／min
(1m of self priming filling machine)
Accuracy ±1％ or less（8cc／1pulse） ±1％ or less （19cc／1pulse）
Power 100W／100V
Size W340×D420×H640mm
Weight 23kg
Setting Counter type, speed control

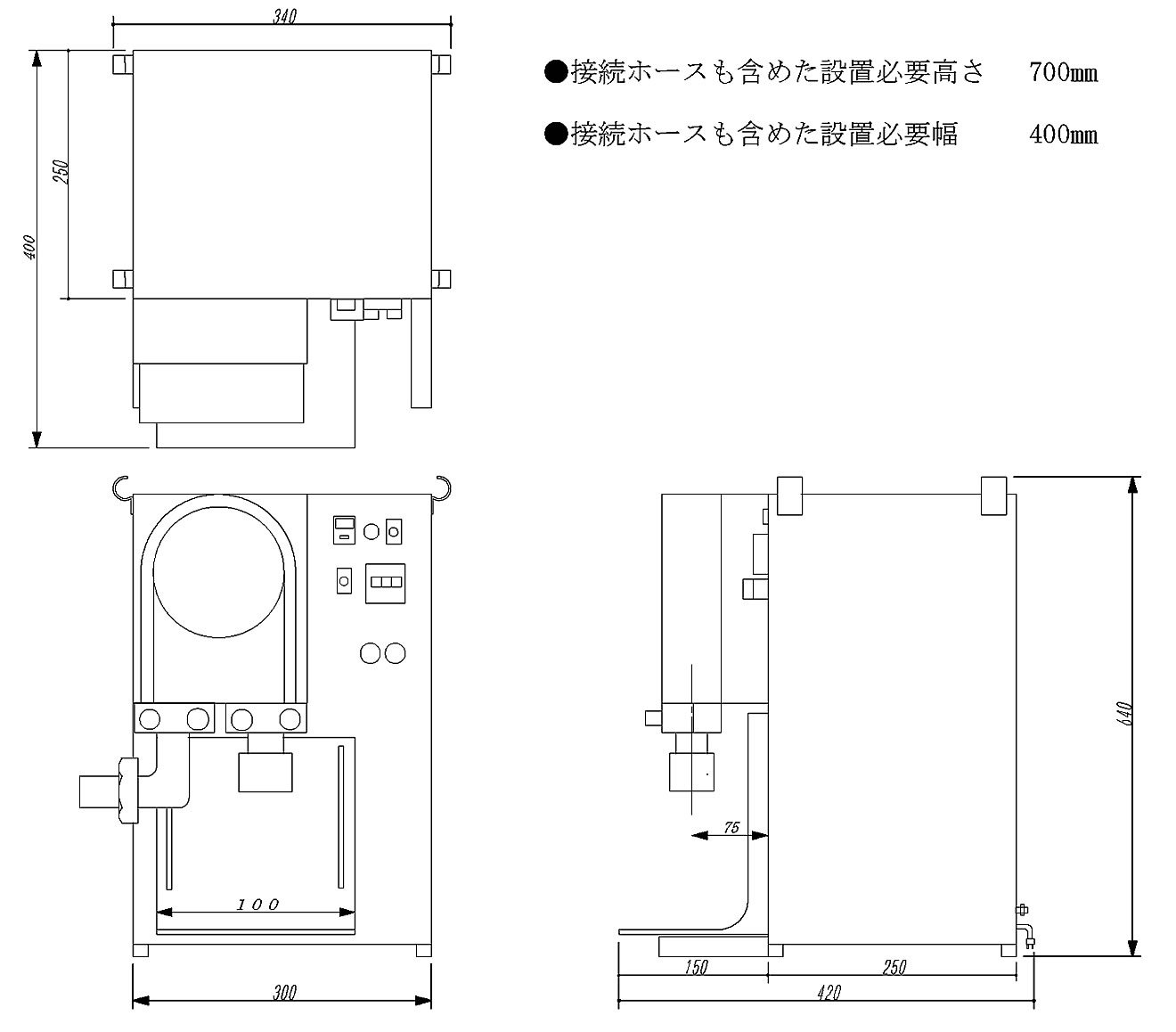

■Technical drawing


■Options
Handgun/M1502T-HG Foot pedal/M1502T-FST
Bottle filling together Need to operate a switch with foot
while filling plastic bag with both hands
Model Product Name
M1502T-HG Handgun for filling machine (with 1m of a hose)
M1502T-FST Foot pedal for filling machine

Freight cost and taxes are not included in the price.
